Building Dashboards

This walkthrough assumes you have a service with at least one validation rule and an entity assigned to it. The richer your service's rules, the more the dashboard builder can offer: a field with a between rule gets range-aware charts; a field with an in rule gets status tiles.

A finished dashboard: line charts with expected-range bands, stat tiles, status, distribution, and fleet liveness

Create a dashboard

Navigate to Dashboards
Click New dashboard
Name it (names are permanent; they anchor the dashboard's identity for access control) and save

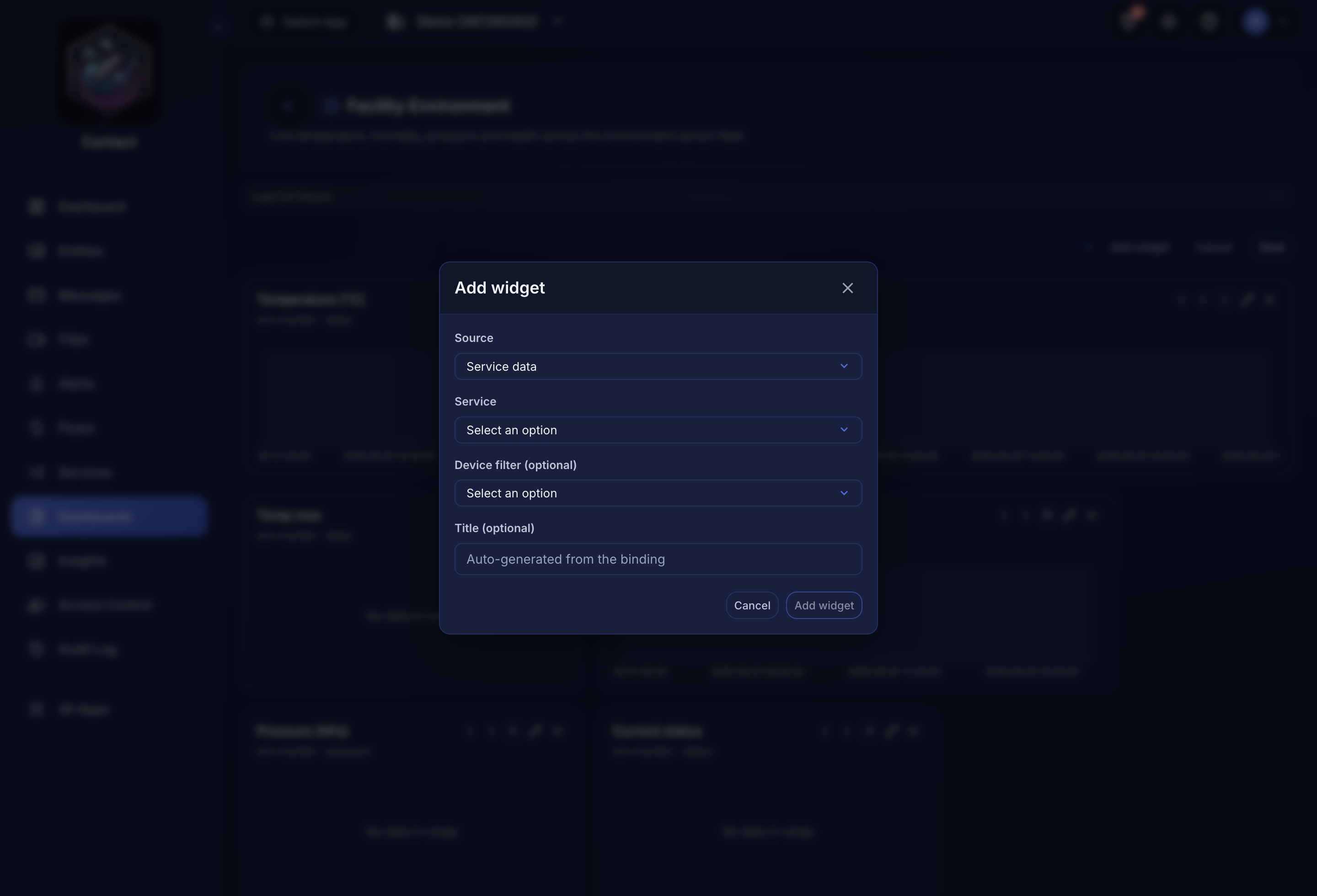

Open the dashboard, click Edit, then Add widget. The wizard walks through the binding:

The Field and Widget steps appear once a service is chosen, filtered to that field's shape.

Source

Service data for anything your devices publish, or Device health (heartbeat) for memory/disk charts of a single device.

Service

pick the service whose data you want.

Field

the catalog lists every field the service's rules and requiredFields declare, with what the service promises about it (for example number, expected 0–50 or one of: ok, warn, crit). Two service-level entries (Validation status and Message volume / liveness) are always available.

Widget

the types that fit the field's shape, best default preselected.

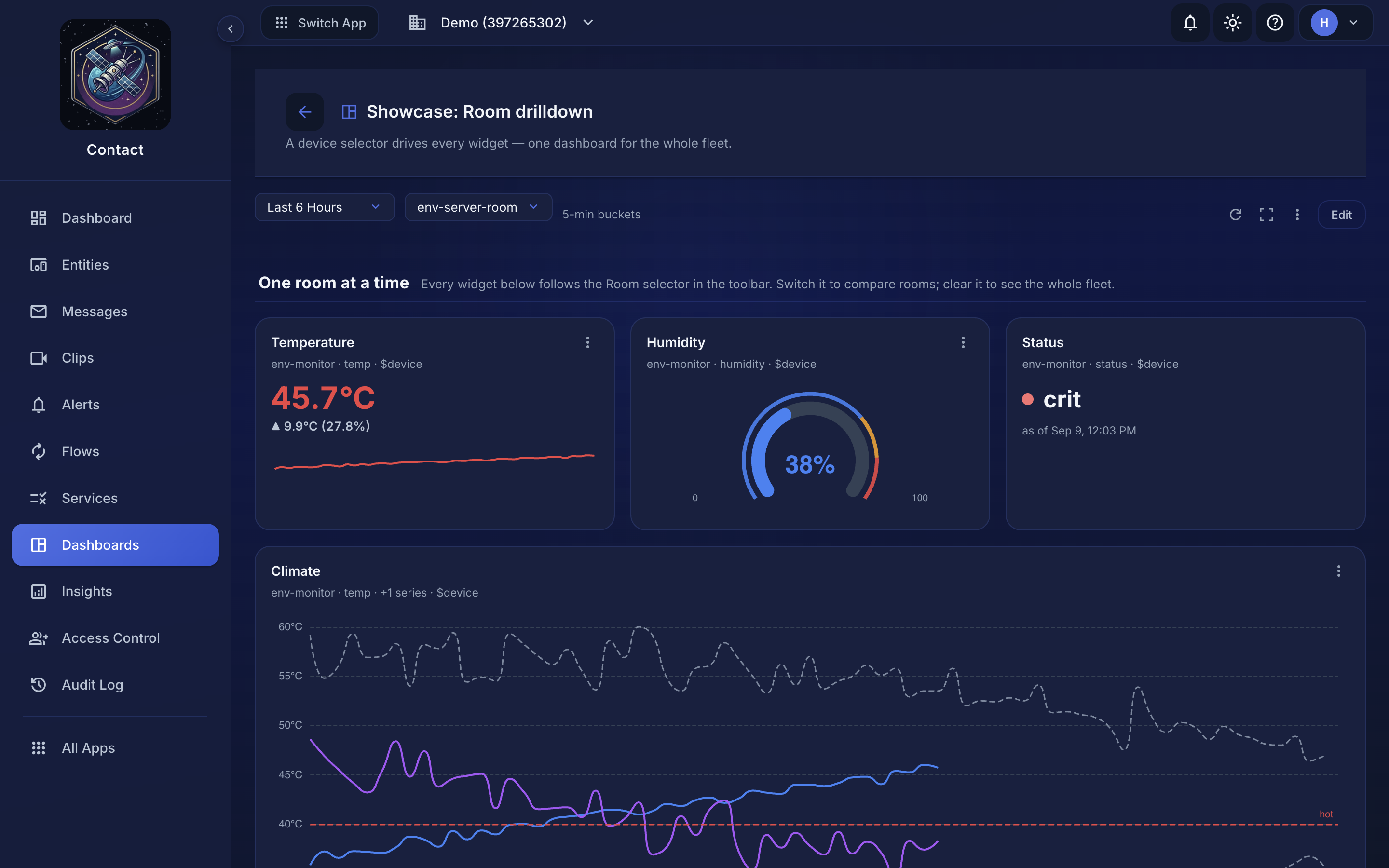

Device filter (optional): chart one device instead of every device on the service.
Title (optional): auto-generated from the binding if left blank.

A field marked with ? has conflicting rule types (say, both between and contains); the builder charts it as the most specific kind.

Widget	Best for	Shows
Line chart	numeric fields	bucketed average over time, with the rule's expected range as a shaded band
Stat tile	numeric fields	the latest value (red when outside the expected range) with a sparkline
Current status	enum fields	the newest raw value, colored by its position in the declared value set
Distribution	enum/text fields	stacked counts of each value over time
Validation health	whole service	pass/fail trend and overall success rate
Liveness	whole service	time since the last publish, over a message-volume trend
Device health	one device	memory and disk percentage over time, from heartbeats

Arrange the layout

In edit mode:

Drag a widget card onto another to reorder (or use the arrow buttons).
The S / M / L button cycles a widget's size: small, medium, and full-width.
Save persists the whole layout; Cancel discards every edit at once.

Reading the data

The time-range picker applies to the whole dashboard, and only offers ranges inside your plan's retention window. If a saved range exceeds it, the dashboard notes that it clamped.
Data refreshes every 30 seconds while the tab is visible.
A numeric widget shows a gap where a device sent something that isn't a number; a gap is information (bad data arrived), not an error. Numeric strings like "21.5" chart normally.
A distribution can include values the service never declared (a device sending "meltdown" when the rule says ok | warn | crit). That mismatch is worth investigating, and the validation-health widget will show the failures.

Limits

Up to 24 widgets per dashboard and 20 dashboards per account.
Dashboards chart publish messages; only messages from entities assigned to the bound service appear.
One widget binds to one field. Two dynamic actions validating the same field chart together, since the field path, not the action name, is what identifies the data.
